WD-40 Specialist Line of Products

WD-40 Specialist Line of Products

What is WD-40 Specialist?

WD-40 Specialist is a new line of best-in-class maintenance products specifically formulated to help you get specific tasks done with ease. The line includes: Rust Release Penetrant Spray, Water Resistant Silicone Lubricant, Protective White Lithium Grease, Long-Term Corrosion Inhibitor, and Rust Remover Soak.

WD-40 Specialist products have been proven effective by multiple independent lab tests and outperform the leading competitors in standard ASTM performance tests.

WD-40® SPECIALIST™ RUST REMOVER SOAK

Dissolves rust quickly without harming surrounding parts, trim, gaskets or paint. It restores surfaces to bare metal without scraping, chipping or scrubbing. For light rust, leave parts in 1-3 hours and for heavy rust, leave parts in overnight. This non-toxic and biodegradable formula is effective on small or large items that can be soaked.

WD-40® SPECIALIST™ WATER RESISTANT SILICONE LUBRICANT

Safely lubricates, waterproofs and protects metal and non-metal surfaces, including rubber, plastic and vinyl better than leading competitors. It dries fast and leaves a clear, non-staining film that doesn’t stick or make a mess, so it won’t attract dirt. Effective in a temperature range from 100° F to 500° F, it’s ideal for use on cables, pulleys, guide rails, valves, linkages, hinges, locks and more, and is 50-state VOC compliant.

WD-40® SPECIALIST™ LONG TERM CORROSION INHIBITOR

Protects and lubricates metal parts, blocking rust and corrosion for up to one year outdoors and two years indoors. It is ideal for both preventative maintenance and use in extreme environments such as high humidity. Safe to use and 50-state VOC compliant, it provides non-drying lubrication that stays where you spray it.

WD-40® SPECIALIST™ PROTECTIVE WHITE LITHIUM GREASE

Is ideal for metal-to-metal applications that require heavy-duty lubrication and protection against rust and corrosion. It sprays on evenly as a liquid and sets dry for a thick, protective coating that won’t wash off, melt, freeze or run in any weather. Effective in a temperature range from 0° F to 300° F, WD-40 Specialist White Lithium Grease provides unbeatable protection with long-lasting lubrication on auto hinges, gears, sprockets, outdoor hinges, latches, overhead door tracks, pulleys, cables and guide rails. It’s also excellent for lubricating equipment before placing in storage, and is 50-state VOC compliant.

WD-40® SPECIALIST™ RUST RELEASE PENETRANT

Penetrates deep into crevices, threads and seams to break the bonds that hold stuck parts together. It also leaves behind a protective layer and helps prevent rust and corrosion from re-forming. Containing Blu TorchTM Technology, a proprietary blend of synthetic additives, it quickly goes to work on rusted nuts, bolts, threads, locks and chains. WD-40 Specialist Rust Release Penetrant frees rusted parts 50% faster than the leading competitor. It is 50-state VOC compliant and safe to use on plastics, rubber and metal.

Available at all SWH Supply Centers!

CPS VP8D Pro-Set Vacuum Pump

CPS VP8D Pro-Set Vacuum Pump

The VP8D Pro-Set® vacuum pump is a powerful 8 CFM, 2 stage unit with a versatile dual voltage 2/3HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

Key Features:

  • Dual voltage operation 110-120V / 220V 50/60Hz.
  • Exceptional ultimate vacuum rating as low as 10 microns.
  • Advanced air cooled motor design for operation in high ambient temperatures.
  • Proprietary oil mist free exhaust port cap for clean, safe job environment.
  • Gas ballast valve speeds achievement of deep vacuum.
  • Multiple port connections for 1/4", 3/8", and 1/2" ACME.
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
  • Solid rubber base provides extreme shock resistance.
  • Sure grip handle ergonomically designed for superior comfort and portability.

Specifications:

  • Dual Voltage Two Stage Vacuum Pumps
  • Dual voltage design vacuum pump operates on 115 VAC or 230 VAC (50 or 60Hz). Advanced two-stage design pulls deep vacuum as low as 10 microns.
  • Free Air Displacement: 8 CFM @ 60Hz, 192l/m @ 50Hz
  • Power Source: 110-120V / 220V 50/60Hz
  • Horse Power RPM (50/60Hz): 2/3 (HP) 2880/3440
  • Ultimate Vacuum: as low as 10 microns
  • Intake Fittings: 1/4, 3/8 and 1/2 SAE
  • Oil Capacity: 29oz / 860ml
  • Dimensions: 14.9" x 5.7" x 10.6"
  • Weight: 29.8lb / 13.5kg
  • Gas Ballast Valve: Yes

Mention This Post for a Limited Time Offer of Only $285.00

Act now! Limited Quantities Available.

DuPont ISCEON MO99 Refrigerant

Recognized as the global leader in R-22 Replacement

DuPont Isceon MO99 Refrigerant

  • A1 refrigerant safety classification (ASHRAE Standard 34 – nonflammable, low toxicity)
  • UL certified (nonflammable as formulated and under worst case leak fractionation conditions)
  • US EPA SNAP listed
  • Used in thousands of retrofits worldwide over the past 4 years
  • MO99™ can be topped off repeatedly with MO99™ with no change in flammability rating
  • No oil change required*
  • Lowest total cost retrofit option for replacing R-22
  • No TXV, line set or component changes*
  • Performance (capacity, efficiency) most similar to R-22 of any no oil change replacement refrigerant.
  • The “One Gas” R-22 replacement solution for use in high, medium and low temperature systems
  • Selected by many leading US Supermarkets as a low and medium temperature R-22 replacement
  • Emerson approved for use in Copeland® DISCUS® compressors
  • Product is readily available through DuPont distributors. There are no supply restrictions.

* Consult retrofit guide at isceon.com for further details.

Continental Industries Black T-Bar Products

NEW Products!

High Volume T-bar Diffusers

High Volumne T-bar Diffusers

  • 3-Tier Diffusers
  • 360° Diffusion
  • No Insulation
  • Black Finish
  • 2′ X 2′

Omnidirectional Plaque Diffusers

Omnidirectional Plaque Diffusers

  • Heavy Gauge Plaque with Corner Radius
  • 360° Diffusion
  • No Insulation
  • Black Finish
  • 2′ X 2′

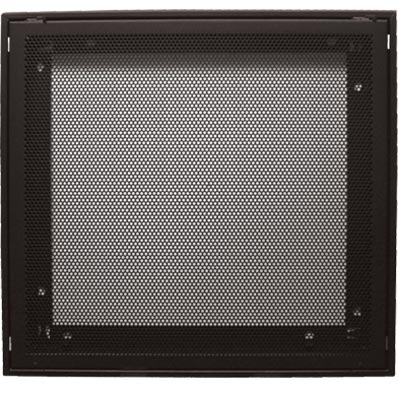

Perforated Face T-bar Filter Grill

Perforated T-bar Filters Grills

  • Perforated Face
  • Fits 20″ x 20″ Filter (not included)
  • Black Finish

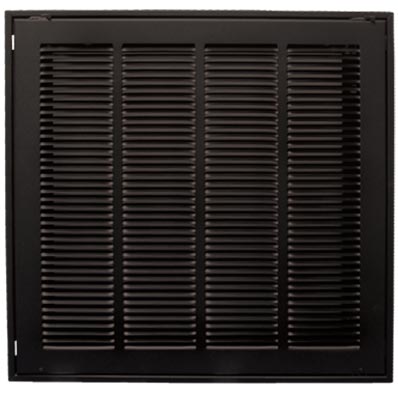

T-bar Filter Grills

T-bar Filter Grills

  • Louvered Face
  • Fits 20″ x 20″ Filter (not included)
  • Black Finish

Perforated T-bar with R6 Plenum

Perforated T-bar

  • Perforated Face
  • Available with or without R6 Fiberglass Plenum
  • Black Finish

Egg Crate Grill

Egg Crate Grills

  • Extruded
  • 2′ X 2′, Grill Size, 22″ X 22″
  • Black Finish

Currently all black grills are available as special order only.

Channellock Code Blue Wrenches

WideAzz® Adjustable Wrenches

Code Blue WideAzz Adjustable Wrenches

Model 8WCB Adjustable Wrench

  • Same capacity as a 12″ wrench
  • Longer jaws grip better, avoiding slippage or nut round off
  • Measurement scales (in. on front mm. on reverse) are handy for sizing nuts, pipe and tube diameters
  • Greater jaw capacity supports larger nuts and bolts
  • Thinner jaws for greater access in tight spaces
  • Precise jaw design grips tight the first time, every time
  • 4 thread knurl & non-protruding jaws provide greater capacity; minimal head width improves performance in confined spaces
  • Code Blue® grips are designed for durability and comfort

6 Channellock Code Blue® Models Available

810WCB Line Drawing

Part # A
Overall Length
B
Jaw Capacity
C
Joint Thickness
D
Joint Width
Weight
6WCB* 6 1.34 0.50 2.65 .46
8WCB* 8 1.50 0.50 2.86 0.68
806WCB 6 0.94 0.41 1.97 0.29
808WCB 8 1.18 0.53 2.50 0.59
810WCB 10 1.38 0.60 2.83 1.44
812WCB 12 1.50 0.74 3.42 1.56

* WideAzz® Models

Pro-Set TR21 Recovery Machine

RECOVER LOST TIME

CPS Products TR21 Recovery Unit

CPS Pro-Set® 2 Cylinder Recovery Machine

BUILT FOR PERFORMANCE

5 years of intensive product research and develoment have produced the Pro-Set® TR21, the smallest, lightest, fastest and most reliable recovery machine found anywhere in the world. That means you can get the job done more effectively, with less effort, in half the time.

FOR PUBLISHED UL/AHRI PERFORMANCE TEST RESULTS VISIT:
www.cpsproducts.com/bg

Born in the USA

CPS designs and manufactures its own products in the United States, resulting in engineering excellence, as well as consistent, industry leading quality and reliability.

CPS Products

Innovations in Design

Pro-Set ® The Workingman’s Choice™

Air-Cooled Equipment and Filter Cleaning

How To Clean Air-Cooled Equipment and Filters

Foam Brite Nu-Brite Alka-Brite

Air-Cooled Condensers

The primary goal in cleaning air-cooled condensers is to emulsify the greasy dirt and grime so that it can be flushed away by rinsing. This restores designed heat transfer and air flow. A good alkaline cleaner like CalClean is the choice, and the selection of Special HD CalClean would be recommended if the soil or  rime is particularly stubborn.

Condenser Coil Cleaning

If foam during cleaning and brightened aluminum fins after cleaning are desired, select any one of the Nu-Calgon “Brite” products (Nu-Brite, Alka-Brite Plus, Foam-Brite or Cal-Brite). They will provide the cleaning of the CalClean products with the added features of foam and brightening. If hydrofluoric acid based products were used before, select Nu-Brite, Alka-Brite Plus or Foam-Brite. They are formulated to out-foam, out-brighten and out-clean the HF-based products. For small condenser coils, or where rinsing is not possible, use Aerosol Nu-Blast.

Evaporator Coils

Evaporator CoilTypically, the desired goal is the same as in cleaning air-cooled condensers, removal of greasy dirt and grime and designed capacities. If an acid based product is desired, where some brightening and foaming is wanted, use Cal-Brite followed by a thorough rinsing. If rinsing is not possible or not desirable, a product that combines “metal-safeness” without rinsing is suggested so long as suitable humidity-condensation is anticipated. Use Evap Pow’r-C in this application. Or, select the convenient aerosol, Evap-Foam No Rinse or
Evap-Fresh.

CalClean Tri Pow’r HD diluted 10:1 can also be used in no-rinse applications.

Electronic Air Filters

Air CleanerWhen electronic air filters become coated with tobacco tars, gummy dust particles and other stubborn deposits, they are difficult to clean. More importantly they lose their ability to adequately remove these types of objectionable items from the air. And typically, wherever electronic air filters are installed, the quality of the air is paramount.

Most alkaline cleaners don’t work because they simply cannot emulsify the stubborn deposits such as tobacco tars. Special HD CalClean and Electronic Cell Cleaner are specifically formulated to handle such a cleaning requirement. It contains an extra-strong blend of surface-active agents and alkaline cleaners, designed especially for cleaning electronic air filters. Special HD CalClean and Electronic Cell Cleaner easily out perform ordinary detergents.

Coil Protection

Cal-Shield
A product formulated with DuPont Teflon® surface protector. Utilizes the recognized ability of Teflon to shield and protect finned cooling and heating coils.

Traditional cleaning of the coil with a coil cleaner removes most to all deposits, restoring lost capacity as well as operating efficiencies. Unfortunately, the problem will return and cleaning will again be required.

Use of Cal-Shield will allow the coil to operate longer periods between cleaning. Once Cal-Shield is applied to the cleaned coil, it forms a protective shield of Teflon that helps the coil resist the depositing of dirt and grime, moisture will “bead up” and run off. This enables the coil to perform more efficiently for a longer period of time. If a coil is in an aggressive environment, such as salt air and food coolers, the Teflon will extend the coil’s service life in this corrosive environment. Consult Nu-Calgon Product Bulletin 3-36.

NoVent Refrigerant Locking Caps

NoVent Refrigerant Locking Caps
NOVENT was created by industry professionals after evidence of refrigerant theft, many times resulting in brain damage or death, after inhaling or “huffing” refrigerant.

NOVENT created the original tamper resistant refrigerant locking caps for the service valve on all air conditioning and mini split systems.

NOVENT caps are patented and precisely machined from high grade brass and encompassed within a protective refrigerant color-coded aluminum casing. These caps are corrosion resistant and have an O-ring seal to provide a positive back-up for leaking service valves.

NOVENT caps are secured on to a unit with a special key sold only to certified HVAC technicians and provide a tamper resistant barrier to reduce theft, vandalism, and the accidental mixing of refrigerant.

NOVENT supports all EPA Management Programs. The use of refrigerant locking caps has been added to the 2009 IMC (international Mechanical Code) and 2009 IRC International Residential Code) for installation on all exposed refrigeration units to help prevent unauthorized access. IAPMO also adopted the code in 2011. The products are a must for companies and technicians to comply with local codes as well as liability concerns connected with refrigerants.

R22 Allocation

That Thing which we experienced in 1992 is here again, 20 years later…

…and with a vengeance!

Readin’, Ritin’ and ‘rithmetic are no longer the basic three Rs, at least not in the HVAC/R industry.

No, the three Rs are Recovery, Recycling and Reclamation.

And, it’s back!

NO CFC NO HCFC

Finding The Right Solution

What Has Changed?

On December 30, 2011 the EPA published a proposed rule for the management of HCFC-22 (R-22) Production and Consumption Allowances for 2012-2014. The proposed rule aims to decrease annual R-22 consumption allocations relative to the EPA’s December 2009 final rule.

The previous rule allocated 100M lbs. for 2011 and planned to step down the allocations to 90M lbs. in 2012. In its December 2011 proposed rule, EPA contemplates reducing the baseline for allowances to a level between 55M and 80M lbs., a significant reduction from the allocation rule that is in place today.

The EPA has indicated that a new final rule, which is expected to be issued later this year following a 30-day comment period and the EPA’s review and analysis of any comments received, will specify the exact reduction percentage relative to the 2009 Final Rule.

How Can SWH Supply Help?

  1. We have a wide range of non-ozone-depleting alternatives that are not subject to a phase-out. We are able and ready to offer our assistance to help you determine which of these alternatives will best meet your needs.
  2. We are in the process of implementing a Cylinder Swap Program – Where we buy your R22 and other refrigerants – in addition to the Reclamation Program we presently offer.

Hopfully these options will ease the transition away from R22.

We’re committed to being The Leader in Reclamation.

Veto Pro Pac HVAC Tech MB Clip-On Meter Bag

Veto Pro Pac HVAC Tech MB Clip-On Meter Bag

The MB is a clip-on meter bag designed to hold a small selection of tools and one or two meters. When not in use it can clip onto any model Veto bag’s tape clip or D-Rings. It features 10 pockets of various sizes that will accommodate a number of meters and a few of the most commonly used tools to diagnose and repair problems on service calls.

PRODUCT SPECIFICATIONS:

  • Width: 3″
  • Length: 8″
  • Height: 9″
  • Weight (empty): 2 lbs.

MAXIMIZED TOOL STORAGE CAPACITY:

  • Vertical Tool Pockets: 8 inside & 2 outside
  • Meter Pockets: 2
  • D-Rings: 4 small

RUGGED MATERIALS & CONSTRUCTION:

  • Durable Leather Trim Panels
  • Nylon Plastic Connection Clip
  • 600 PVC Impregnated Denier Nylon Body
  • 1200 PVC Impregnated Denier Nylon Tool Pockets
  • Zippers: Double Stitched, Heavy Duty Plastic Coil Zippers
  • D-Rings: Powder Coated Steel
  • Stitching: Industrial Strength Double Nylon Stitching

OTHER FEATURES:

  • Warranty: 5 Years (see Veto warranty terms and conditions)
