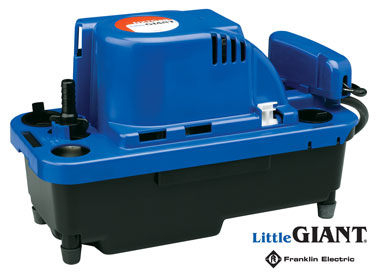

NxtGen Automatic Condensate Removal Pump by Little Giant
The newest in condensate pump technology. A slimmer footprint… an oil resistant tank and check valve that eliminate the problem of cracked tanks exposed to oil… and numerous other features.
Features:
- 1/4 turn check valve allows servicing without removal of tubing, eliminating water spills
- Patent-pending cooling design increases pump life
- Includes optional external overflow safety switch, which gives the option to connect air-handler shutdown or activate an alarm or building automation system
- External test/run lever for quick and easy drainage of tank for servicing
- Oil-resistant tank and check valve eliminates the problem of cracked tanks with exposure to oil
- Rubber feet absorb vibration on hard surface installations
- Slimmer footprint size offers flexibility in tight spaces
| Horsepower | 1/30 |
| Flow | 84 GPH @ 1′ Lift |
| Cord Length | 6′ |
| Shut Off | 21′ |
| Voltage | 115 Volt / 60 Hertz |
| Amps | 1.5 |
| Watts | 93 |
| Weight | 5.6 Lbs. |
| Dimensions | W 4.8″ x L 10.2″ x H 6.5″ |
| Head (ft) | Flow (GPH) | Head (m) | Flow (LPH) |
|---|---|---|---|
| 1 | 84 | 0.3 | 318.0 |
| 5 | 75 | 1.5 | 283.9 |
| 10 | 60 | 3.0 | 227.1 |
| 15 | 42 | 4.6 | 159.0 |
| 20 | 10 | 6.1 | 37.9 |
Only $40.27 Expires December 31, 2011
